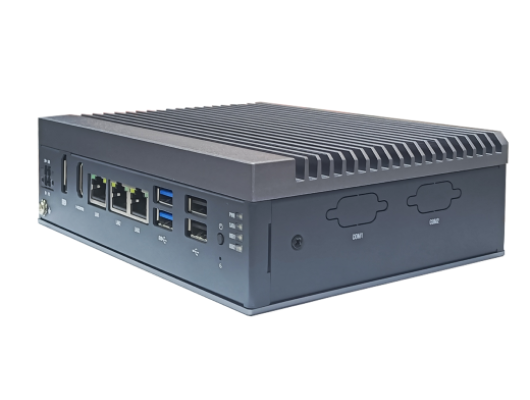

| Specs | Item | MBC-1215 Series | |
| Processor System | CPU | Intel® Elkhart Lake platform J6412/N6210/X6425E CPU | |
| TDP | 12W MAX | ||
| BIOS | AMI 128Mbit SPI Flash | ||
| Memory | Technology | 2 x DDR4 3200MT/s SO-DIMM | |
| Max. Capacity | 32 GB | ||
| Display | Controller | Intel Gen11 Graphics Engines (SoC integrated) | |
| Graphic Features | DX12, OGL4.5, OCL1.2, Vulkan 1.1, MPEG2, H.264, JPEG/MJPEG, H.265 (HEVC) | ||
| I/O Interface | DP | 1 x DP 1.4 up to 4096 x 2160 @ 60Hz | |
| HDMI | 1 x HDMI 2.0b up to 4096 x 2160@60Hz | ||
| Ethernet | 2 x Intel i210-AT GbE LAN, 1 x Intel i226-V 2.5GbE LAN | ||
| COM | COM1: RS-232/422/485 COM2: RS-232 | ||
| USB | 2 x USB3.0, 2 x USB2.0 | ||
| Power DC Jack | Phoenix 4pin | ||
| Expansion | M.2 E-Key | 1 x M.2 2230 Support Wi-Fi | |
| M.2 B-Key | 1 x M.2 3052 Support 4G/5G | ||
| M.2 M-Key | 1 x M.2 2280 SATA3.0 | ||
| SATA | 1 x SATA3.0 | ||
| Internal USB2.0 | 3 x Internal USB2.0 (Pin out) | ||
| SIM | 1 x Nano SIM | ||
| LED | LED Lights | Power status, HDD R/W,USER1,USER2 | |
| Power | Supply Voltage | DC 9~36V±10% | |
| Max. Consumption | 30W | ||
| Power Management | AT/ATX | ||
| Others | Watchdog | Timer Output System reset, Programmable counter from 1 ~ 255 minutes/ seconds | |
| TPM | TPM 2.0 (optional) | ||
| Environment | Operating Temperature | 0 ~ 60 °C (32~140°F) | |
| Storage Temperature | -40° C ~ 85° C (-40~185°F) | ||
| Relative Humidity (Operating) | 95% @ 40°C ( Non-Condensing ) | ||
| Relative Humidity (Storage) | 95% @ 60 °C (non-condensing) | ||
| Certification | EMC | CE, FCC | |
| Physical characteristic | Dimensions | 172 x 125 x 50mm(L x W x H) | |
| Operation system | OS | Windows 10/11, centos 8, ubuntu 20.04/22.04 | |
: Intel® Elkhart Lake J6412/N6210/X6425E
: 1 DP, 1 HDMI
: 3 LAN (2 x Intel i210, 1 x Intel i226)
: 1 RS-232/422/485, 1 RS-232 (可选)
: 2 USB 3.0, 2 USB 2.0
: 支持 4G/5G, Wi-Fi扩展
: Win 10/11 和 Linux 多版本系统
