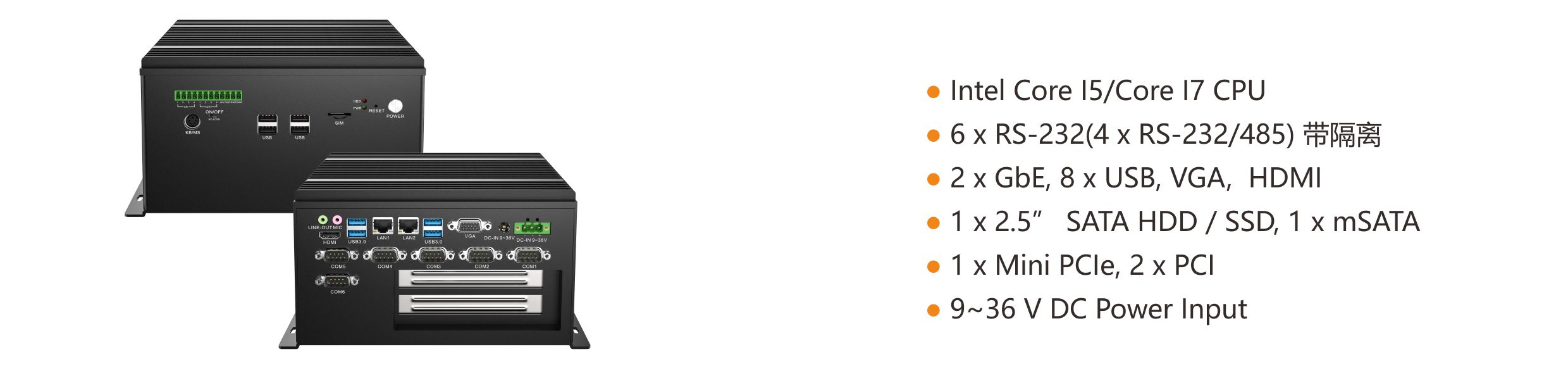

处理器：: Intel Core I5/Core I7 CPU
串口通信：: x RS-232(4 x RS-232/485) 带隔离
接口：: 2 x GbE, 8 x USB, VGA, HDMI
硬盘：: 1 x 2.5” SATA HDD / SSD, 1 x mSATA
PCI：: 1~2 Mini PCIe, 1~2 PCI,1~2 PCIe
电压：: 9~36 V DC Power Input
| 产品规格 | MBC-7102-6360U | MBC-7102-8265U | MBC-7102-8565U |
|---|---|---|---|
| 处理器 | Intel Core I5-6360U up to 3.1 GHz | Intel Core I5-8265U up to 3.9 GHz | Intel Core I7-8565U up to 4.6 GHz |
| 内存 | 2 x DDR4 2133 MHz SO-DIMM up to 32GB | 2 x DDR4 2133 MHz SO-DIMM up to 32GB | 2 x DDR4 2133 MHz SO-DIMM up to 32GB |
| 显示芯片 | By CPU | By CPU | By CPU |
| 操作系统 | Windows 7/8/10, WS7E, Ubuntu | Windows 10, Ubuntu | Windows 10, Ubuntu |
| 硬盘 | 1 x 2.5″SATA HDD / SSD | 1 x 2.5″SATA HDD / SSD | 1 x 2.5″SATA HDD / SSD |
| SDD | 1 x mSATA | 1 x mSATA | 1 x mSATA |
| 串口 | 6 x RS-232(4 x RS-232/485) 带隔离 | 6 x RS-232(4 x RS-232/485) 带隔离 | 6 x RS-232(4 x RS-232/485) 带隔离 |
| USB | 4 x USB 2.0, 4 x USB3.0 | 4 x USB 2.0, 4 x USB3.0 | 4 x USB 2.0, 4 x USB3.0 |
| 网口 | 2 x Intel i211 for GbE | 2 x Intel i211 for GbE | 2 x Intel i211 for GbE |
| 显示接口 | 1 x VGA, 1 x HDMI | 1 x VGA, 1 x HDMI | 1 x VGA, 1 x HDMI |
| 音频 | Line Out，Mic | Line Out，Mic | Line Out，Mic |
| GPIO | 4 x IN, 4 x OUT | 4 x IN, 4 x OUT | 4 x IN, 4 x OUT |
| PS/2 | 1 x PS/2 Keyboard Mouse | 1 x PS/2 Keyboard Mouse | 1 x PS/2 Keyboard Mouse |
| 远程开关 | 1 x 2Pin Remote SW | 1 x 2Pin Remote SW | 1 x 2Pin Remote SW |
| PCI/PCIe | 1 x PCIe X1, 1 x PCIe X4 | 1 x PCIe X1, 1 x PCIe X4 | 1 x PCIe X1, 1 x PCIe X4 |
| Mini PCIe | 1 x full-size mini PCIe | 1 x full-size mini PCIe | 1 x full-size mini PCIe |
| SIM | 1 x SIM | 1 x SIM | 1 x SIM |
| USB KEY | NA | NA | NA |
| 天线接口 | 2 x SMA-type | 2 x SMA-type | 2 x SMA-type |
| 输入电压 | DC 9~36V | DC 9~36V | DC 9~36V |
| 认证 | CE, FCC Class A | CE, FCC Class A | CE, FCC Class A |
| 工作温度 | -10 ~ 60℃(SSD) | -10 ~ 60℃(SSD) | -10 ~ 60℃(SSD) |
| 存储温度 | -40 ~ 85℃ | -40 ~ 85℃ | -40 ~ 85℃ |
| 相对湿度 | 10 ~ 95% (无冷凝) | 10 ~ 95% (无冷凝) | 10 ~ 95% (无冷凝) |
| 外壳 | 铝合金 | 铝合金 | 铝合金 |
| 安装方式 | 壁挂式 | 壁挂式 | 壁挂式 |
| 尺寸 (宽 x 深 x 高) | 223x189x117mm | 223x189x117mm | 223x189x117mm |
| 重量 | 1.5kg | 1.5kg | 1.5kg |
▌技术参数
| 产品规格 | MBC-7111-6360U | MBC-7111-8265U | MBC-7111-8565U |
|---|---|---|---|
| 处理器 | Intel Core I5-6360U up to 3.1 GHz | Intel Core I5-8265U up to 3.9 GHz | Intel Core I7-8565U up to 4.6 GHz |
| 内存 | 2 x DDR4 2133 MHz SO-DIMM up to 32GB | 2 x DDR4 2133 MHz SO-DIMM up to 32GB | 2 x DDR4 2133 MHz SO-DIMM up to 32GB |
| 显示芯片 | By CPU | By CPU | By CPU |
| 操作系统 | Windows 7/8/10, WS7E, Ubuntu | Windows 10, Ubuntu | Windows 10, Ubuntu |
| 硬盘 | 1 x 2.5″SATA HDD / SSD | 1 x 2.5″SATA HDD / SSD | 1 x 2.5″SATA HDD / SSD |
| SDD | 1 x mSATA | 1 x mSATA | 1 x mSATA |
| 串口 | 6 x RS-232(4 x RS-232/485) 带隔离 | 6 x RS-232(4 x RS-232/485) 带隔离 | 6 x RS-232(4 x RS-232/485) 带隔离 |
| USB | 4 x USB 2.0, 4 x USB3.0 | 4 x USB 2.0, 4 x USB3.0 | 4 x USB 2.0, 4 x USB3.0 |
| 网口 | 2 x Intel i211 for GbE | 2 x Intel i211 for GbE | 2 x Intel i211 for GbE |
| 显示接口 | 1 x VGA, 1 x HDMI | 1 x VGA, 1 x HDMI | 1 x VGA, 1 x HDMI |
| 音频 | Line Out，Mic | Line Out，Mic | Line Out，Mic |
| GPIO | 4 x IN, 4 x OUT | 4 x IN, 4 x OUT | 4 x IN, 4 x OUT |
| PS/2 | 1 x PS/2 Keyboard Mouse | 1 x PS/2 Keyboard Mouse | 1 x PS/2 Keyboard Mouse |
| 远程开关 | 1 x 2Pin Remote SW | 1 x 2Pin Remote SW | 1 x 2Pin Remote SW |
| PCI/PCIe | 1 x PCI, 1 x PCIe X4 | 1 x PCI, 1 x PCIe X4 | 1 x PCI, 1 x PCIe X4 |
| Mini PCIe | 1 x full-size mini PCIe | 1 x full-size mini PCIe | 1 x full-size mini PCIe |
| SIM | 1 x SIM | 1 x SIM | 1 x SIM |
| USB KEY | NA | NA | NA |
| 天线接口 | 2 x SMA-type | 2 x SMA-type | 2 x SMA-type |
| 输入电压 | DC 9~36V | DC 9~36V | DC 9~36V |
| 认证 | CE, FCC Class A | CE, FCC Class A | CE, FCC Class A |
| 工作温度 | -10 ~ 60℃(SSD) | -10 ~ 60℃(SSD) | -10 ~ 60℃(SSD) |
| 存储温度 | -40 ~ 85℃ | -40 ~ 85℃ | -40 ~ 85℃ |
| 相对湿度 | 10 ~ 95% (无冷凝) | 10 ~ 95% (无冷凝) | 10 ~ 95% (无冷凝) |
| 外壳 | 铝合金 | 铝合金 | 铝合金 |
| 安装方式 | 壁挂式 | 壁挂式 | 壁挂式 |
| 尺寸 (宽 x 深 x 高) | 223x189x117mm | 223x189x117mm | 223x189x117mm |
| 重量 | 1.5kg | 1.5kg | 1.5kg |
▌技术参数
| 产品规格 | MBC-7120-6360U | MBC-7120-8265U | MBC-7120-8565U |
|---|---|---|---|
| 处理器 | Intel Core I5-6360U up to 3.1 GHz | Intel Core I5-8265U up to 3.9 GHz | Intel Core I7-8565U up to 4.6 GHz |
| 内存 | 2 x DDR4 2133 MHz SO-DIMM up to 32GB | 2 x DDR4 2133 MHz SO-DIMM up to 32GB | 2 x DDR4 2133 MHz SO-DIMM up to 32GB |
| 显示芯片 | By CPU | By CPU | By CPU |
| 操作系统 | Windows 7/8/10, WS7E, Ubuntu | Windows 10, Ubuntu | Windows 10, Ubuntu |
| 硬盘 | 1 x 2.5″SATA HDD / SSD | 1 x 2.5″SATA HDD / SSD | 1 x 2.5″SATA HDD / SSD |
| SDD | 1 x mSATA | 1 x mSATA | 1 x mSATA |
| 串口 | 6 x RS-232(4 x RS-232/485) 带隔离 | 6 x RS-232(4 x RS-232/485) 带隔离 | 6 x RS-232(4 x RS-232/485) 带隔离 |
| USB | 4 x USB 2.0, 4 x USB3.0 | 4 x USB 2.0, 4 x USB3.0 | 4 x USB 2.0, 4 x USB3.0 |
| 网口 | 2 x Intel i211 for GbE | 2 x Intel i211 for GbE | 2 x Intel i211 for GbE |
| 显示接口 | 1 x VGA, 1 x HDMI | 1 x VGA, 1 x HDMI | 1 x VGA, 1 x HDMI |
| 音频 | Line Out，Mic | Line Out，Mic | Line Out，Mic |
| GPIO | 4 x IN, 4 x OUT | 4 x IN, 4 x OUT | 4 x IN, 4 x OUT |
| PS/2 | 1 x PS/2 Keyboard Mouse | 1 x PS/2 Keyboard Mouse | 1 x PS/2 Keyboard Mouse |
| 远程开关 | 1 x 2Pin Remote SW | 1 x 2Pin Remote SW | 1 x 2Pin Remote SW |
| PCI/PCIe | 2 x PCI | 2 x PCI | 2 x PCI |
| Mini PCIe | 1 x full-size mini PCIe | 1 x full-size mini PCIe | 1 x full-size mini PCIe |
| SIM | 1 x SIM | 1 x SIM | 1 x SIM |
| USB KEY | NA | NA | NA |
| 天线接口 | 2 x SMA-type | 2 x SMA-type | 2 x SMA-type |
| 输入电压 | DC 9~36V | DC 9~36V | DC 9~36V |
| 认证 | CE, FCC Class A | CE, FCC Class A | CE, FCC Class A |
| 工作温度 | -10 ~ 60℃(SSD) | -10 ~ 60℃(SSD) | -10 ~ 60℃(SSD) |
| 存储温度 | -40 ~ 85℃ | -40 ~ 85℃ | -40 ~ 85℃ |
| 相对湿度 | 10 ~ 95% (无冷凝) | 10 ~ 95% (无冷凝) | 10 ~ 95% (无冷凝) |
| 外壳 | 铝合金 | 铝合金 | 铝合金 |
| 安装方式 | 壁挂式 | 壁挂式 | 壁挂式 |
| 尺寸 (宽 x 深 x 高) | 223x189x117mm | 223x189x117mm | 223x189x117mm |
| 重量 | 1.5kg | 1.5kg | 1.5kg |
